A perfect combination between the aluminum structure and the fabric weave fabric that, as a stylist, gives a light, attractive and contemporary
aesthetic. A game of sheets that effectively filters the sun’s rays and allows a continuous and pleasant air recycling.

Single-breasted model:

· Free standing
· Configuration side-by-side
· Wall configuration
· Configuration side-by-side

Technical info:

Tress is a tailor-made sun protection system consisting of a 45° overview and interwoven wire mesh. The 45°
overview is a patented metal frame, made of aluminum EN-AW 6060 T6 and temporary under UNI EN
13782/2006. The structural elements of the overview are CE marked according to CPR 305/2011 (compliant
with the requirements of the harmonized standard EN 1090-1: 2009 + A1 and its implementing standard EN
1090-3: 2008), made in EXC1 execution and statically verified for temporary external solar roofing weighing
up to 25 kg / m2.

Lighting:

Stripe light kit (dimmable)
Aluminum LED profile with satin opal “glass” and
remote control.

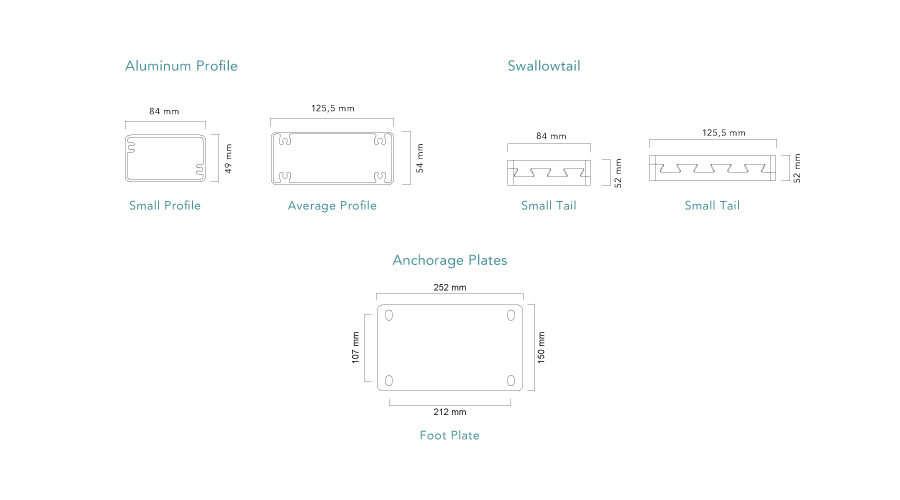

Swallowtail:

The beam engagement system is made of aluminum alloy AW6060-T6 alloy (Frigerio patented). The ‘swallowtail’ kit is marked according to the harmonized standard EN 1090-
1. This solution guarantees a practical and solid junction between the elements and the possibility of coupling several structural modules between them.

Anchorage Plates:

The anchorage on the ground is guaranteed by AW 6060-
T6 Aluminum Alloy Plates, to be properly tiled and of a
thickness of 1 cm to ensure a uniform distribution of loads
and protection against atmospheric agents.
